Quick Guide


What is a 3D Space?

A 3DSpace is an instantiation of the InstanceGraph that exists as an addressable, persistent web resource. 3DSpaces can be used to easily collaborate, store and share information or decouple the composition of 3D data assemblies and their consumption. For example, a user can setup a 3DSpace with 3D data and annotations and share it with colleagues, who can then, at a later point in time, review and discuss the contents in a shared 3D experience. All of these can happen in separate applications and any results can automatically be forwarded to or triggered by other systems.

More information here.

File Schema & Opening an URL:

When the app is installed - you can use any URL with the schema "i3dhub://" (replaces http://) or "i3dhubs://" (replaces https://) and it will automatically load the 3DSpace in the app.

E.g: i3dhubs://<LINK_TO_3DSPACE>

Developer Mode:

  1. Turn on Developer mode by opening iOS-Settings -> instant3Dhub -> "Developer Mode"

  2. When enabled - Developer Mode popup will appear everytime the app comes in focus.

Record an ARKit Session:

  1. Enable Developer Selection (See Developer Mode section)

  2. Open the "instant3Dhub" directly

  3. Press "Recorder" to go into recorder mode

  4. Press "Start Recording" and accordingly "Stop Recording" to launch or stop a record.

Download Recorded ARKit Session :

Windows:

Download and install iTunes from the Microsoft Store.
Connect your iOS device to the computer and validate/trust your device to use - so that iTunes can recognise and access the data.

Check the screenshots below:
  1. Once the iOS device is recognised - Click on the icon indicated in the screenshot.
  2. Once the iOS device is selected - Select the "File Sharing"option for the device. (Indicated by 2)
  3. Select the application "instant3Dhub", which will show all the files available for download. (Indicated by 3 and 4)
  4. Select the folder to download - Nomenclature for folder names is "DD.MM.YY, HH:MM:SS"
  5. Click "Save"to download the data.

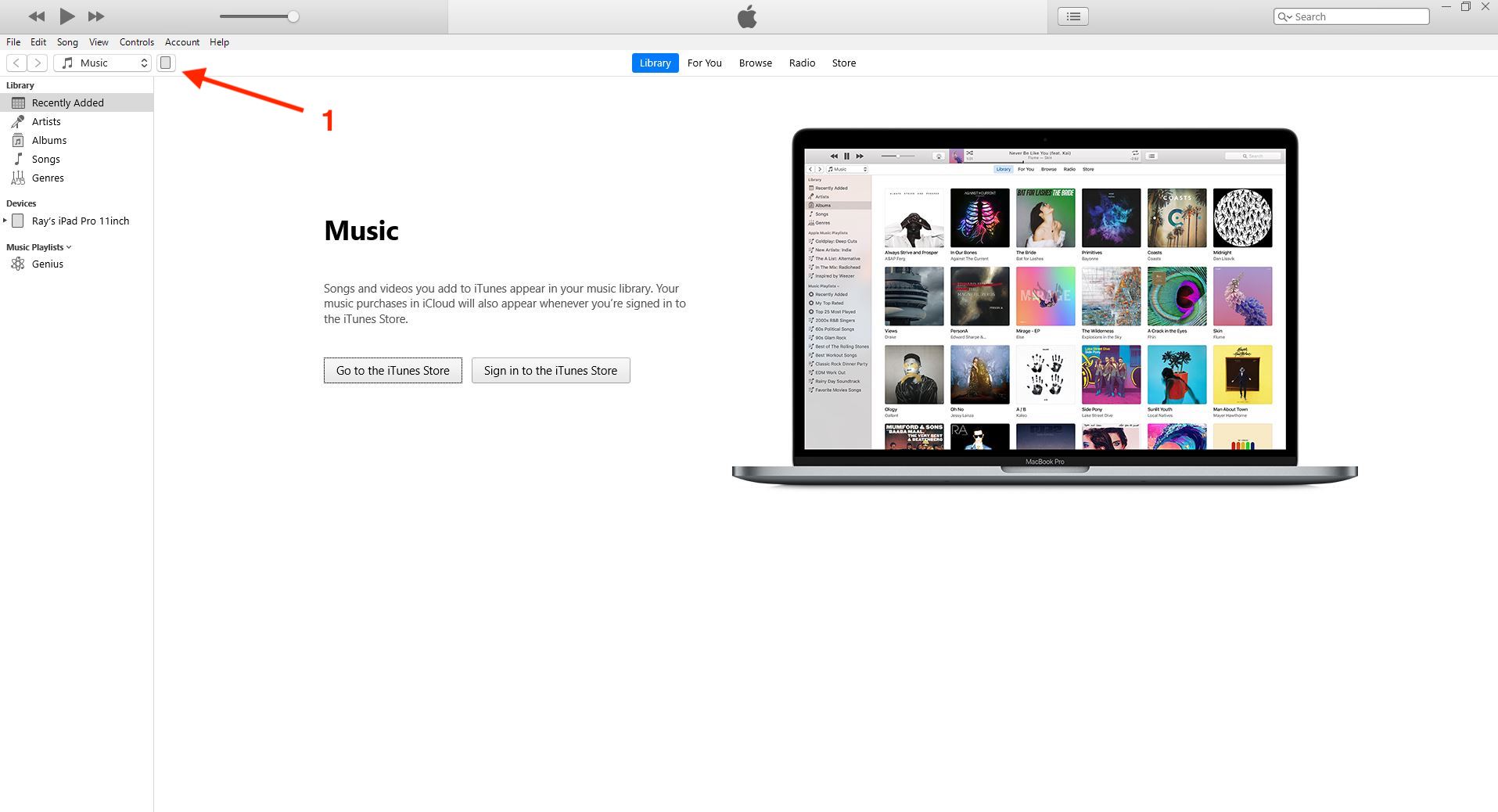

    6. Step 1

    Step 2

Mac OS: Finder

Connect your iOS device to the computer and Finder should recognize the device and list it on the left pane (Indicated by 1 in screenshot)

  1. Select the desired device from "Locations" and it will load the device information.
  2. In the top-level menu. Select "Files" (Indicated by 2)
  3. Select the application "instant3Dhub", which will show all the files available for download. (Indicated by 3)
  4. Select the folder to download - Nomenclature for folder names is "DD.MM.YY, HH:MM:SS"
  5. To download the files - Just drag and drop selected folder in the local directory.

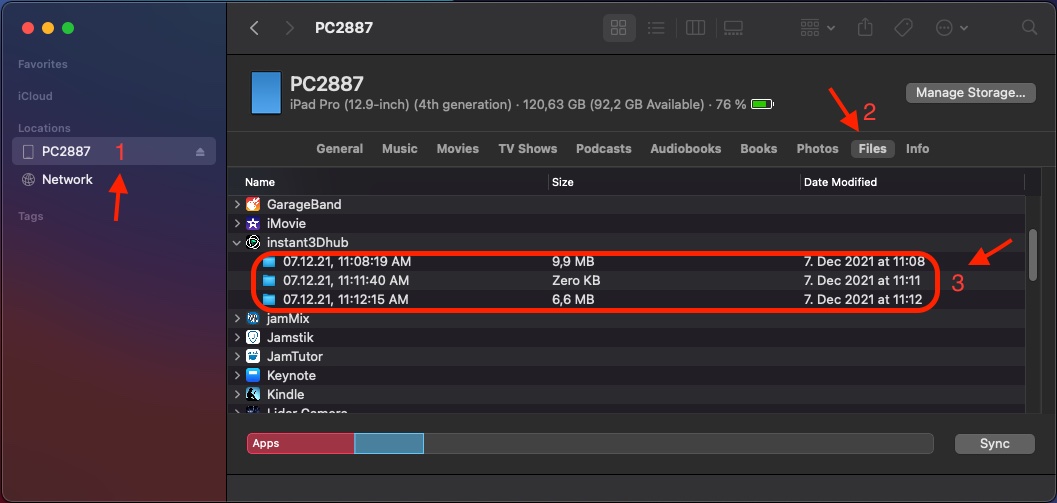

    6. Mac Step 1

FAQs:

  1. When I switch apps, I always find myself at the main screen? Where is my 3D Space?

    2. Whenever the app is in the background for more than a certain timeperiod (around 15 seconds) the connection to the 3DSpace is reset and you are shown the Splash Screen. You can rejoin your 3DSpace anytime, by scanning the QR code again.

  2. How do I download a recorded ARKit Session?

    3. For Windows : Through iTunes.
    For Mac OS : Through Finder.

Additional Information:

Webvis - Our powerful web application based on Polymer components using the underlying API which enables users to perform different tasks related to 3D visualization, inspection and provides a number of CAD/DMU tools. Webvis UI Overview
